TPO Seam Welding Basics: Heat, Speed, and the Probe Test

Hot-Air Welder Kit 1600W with case and nozzles

Ask any commercial roofer what separates a roof that lasts 20 years from one that leaks in two, and the answer is the seams. A TPO seam is not glued. It is fused — two sheets melted into one. Done right, the seam is stronger than the sheet itself. Done wrong, it is a slow leak waiting for the first hard rain.

Start with a test weld, every single time

Air temperature, wind, and how long the membrane sat in the sun all change how it welds. Before you run a production seam, weld two scrap pieces with the settings you plan to use, let them cool, and peel them. You want the membrane itself to tear before the weld lets go. If the weld peels apart clean, your settings are wrong — adjust and test again. Two minutes of testing beats a day of repairs.

Heat and speed work together

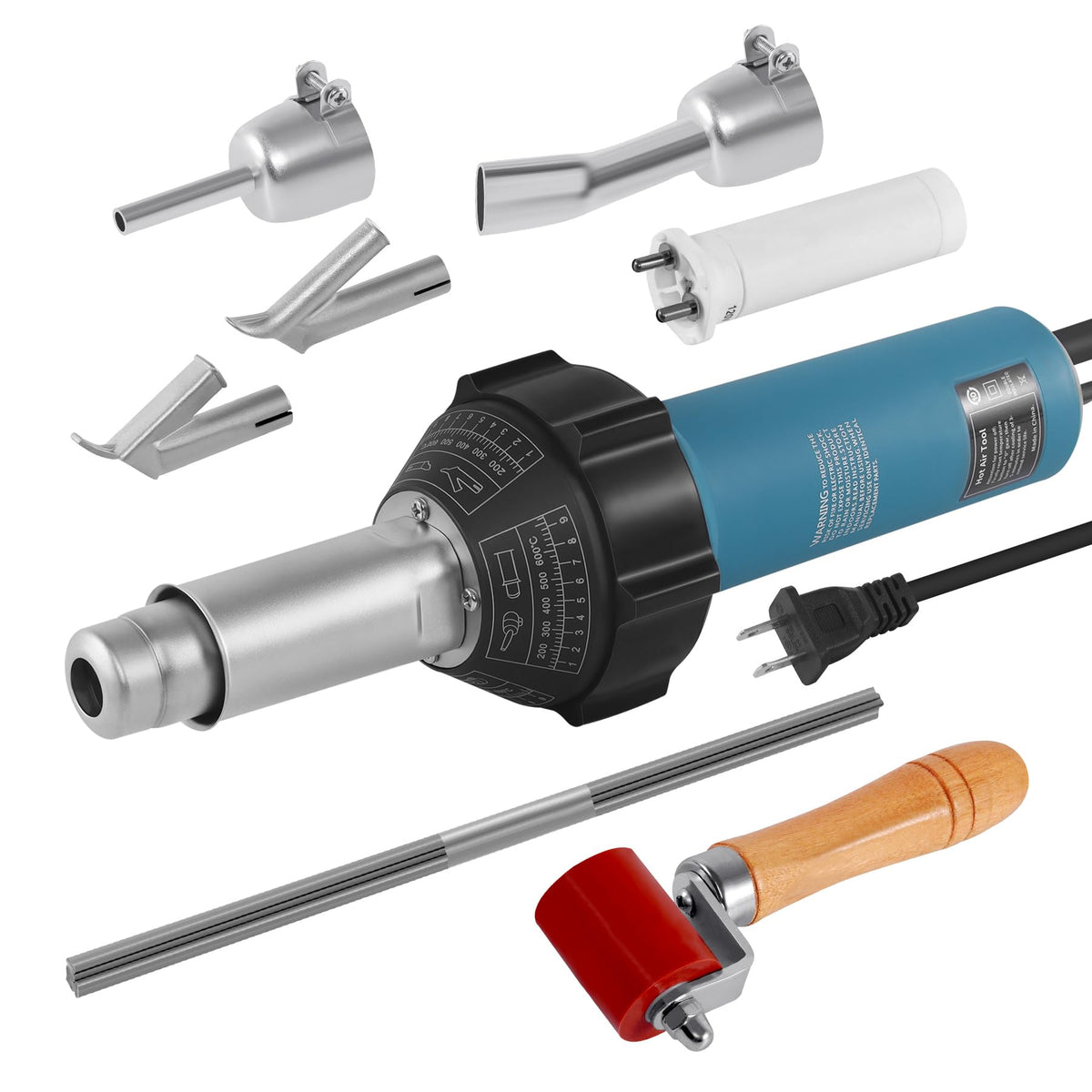

Too hot and slow cooks the sheet brittle. Too cold and fast leaves a cold weld that looks fine and fails later. The Hot-Air Welder Kit 1600W with Case and Nozzles ($389.99) gives you the temperature control to dial in and hold a setting, and the nozzle set covers seams, details, and patch work with one tool.

Pressure is the third leg

Heat melts, speed times it, but pressure is what makes it one piece. Roll every seam while it is still hot. The Weighted Steel Seam Roller — 6in Wide ($54.99) puts even weight across wide seams, and the Silicone Seam Roller 45mm ($16.99) is the one you want around pipes, corners, and detail work where a big roller cannot reach.

Probe every seam before you leave the roof

Run a seam probe along both edges of every weld after it cools. It should glide without catching. Any spot where the probe slips under the sheet is a void — cut it out, patch it, and weld it again right there. Finding it with a probe costs two minutes. Finding it after the ceiling stains cost a callback, a repair, and your reputation.

Working-roofer prices, every day. Everything above is in stock at Rickett Roofing Tool Picks. Use code RICKETT15 at checkout for 15% off.
